DT118A Static Torque Sensor

MODEL : DT118A

Static torque sensor, aluminum alloy or stainless steel construction
0.2N.m…150N.m

● Capacities from 0.2N.m to 150N.m
● Made of stainless steel or aluminium alloy
● High torsional stiffness, easy to mount
● High accuracy, high stability, good reproducibility

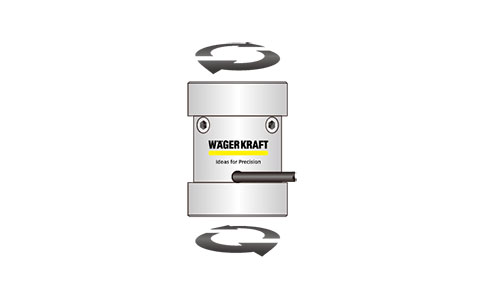

● For measuring of static torque and non-continuous rotating torque
● Environmental protection IP65

Capacity

0.2N.m / 0.5N.m / 1N.m / 2N.m / 3N.m / 5N.m / 6N.m / 10N.m / 20N.m / 30N.m / 50N.m / 100N.m / 150N.m

Applications

● Research and development
● Process measuring and control technology
● Fully automated machining centres
● Measuring and control devices
● Tool engineering
● Special mechanical engineering
● Assembly technology
● Automotive industry
