Wägerkraft

MODEL : ES10C

Force measurement controller, aluminum alloy housing
Panel mount

● 1000 times/sec high-speed A/D processing, 960Hz/480Hz/240Hz/120Hz speed selectable
● 6 digits, LED red, Double line display
● Anti-electromagnetic interference, anti-external vibration
● Multi-level dynamic digital filtering to meet the needs of high-speed dynamic weighing /force measurement
● Suitable for high-speed dynamic checkweighing and high-speed force measurement
● Force value trigger force measurement control, I/O trigger force measurement control
● Multiple output interfaces available: RS232, RS485, Analog, I/O port
● Support sample hold, average hold, peak hold, knee hold, interval detection

RS232, RS485, Analogue, I/O ports

● Press fitting machines
● Fitting and mounting machines
● Robotics
● Medical measuring equipment
● Testing equipment
● Dynamic force measurement and monitoring
● Automatic measurement and control system

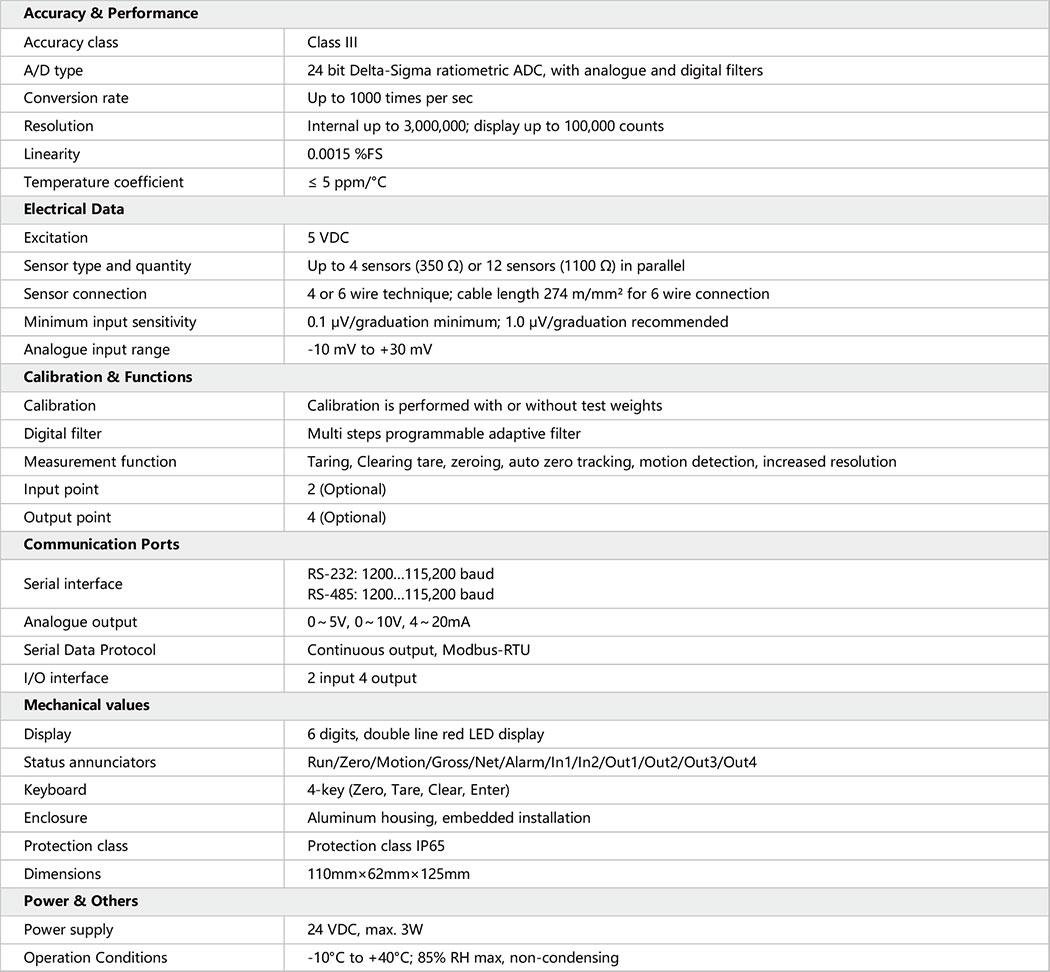

Technical Specifications

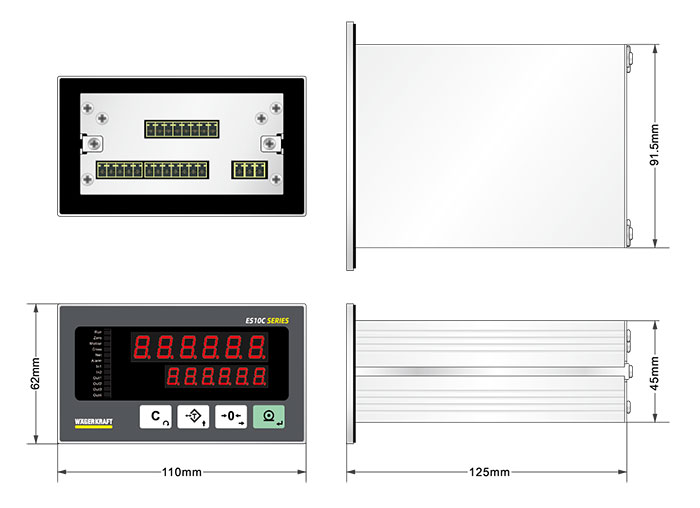

Dimensions

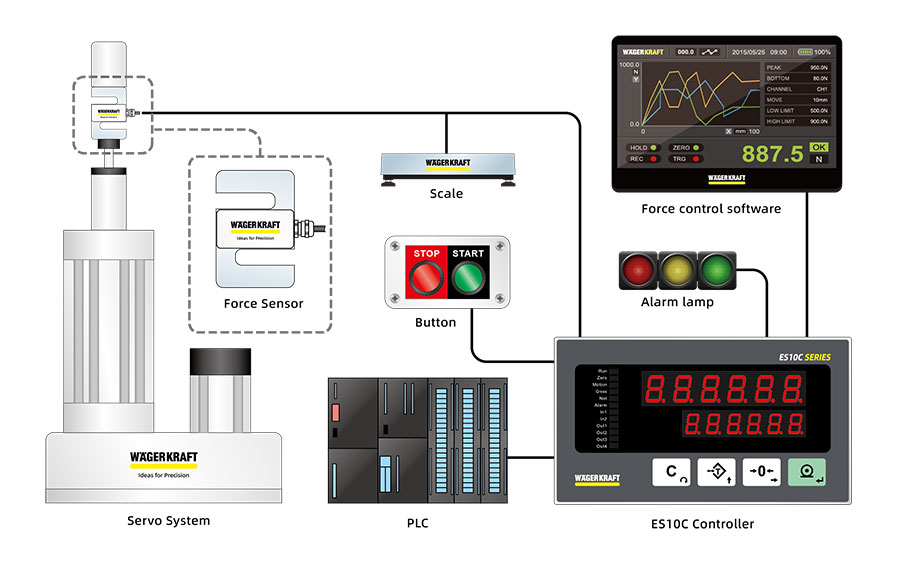

Cases

Options

Industrial Power Supply

Mobile Power Supply

PC

PLC

Clamp Filters

Related Products

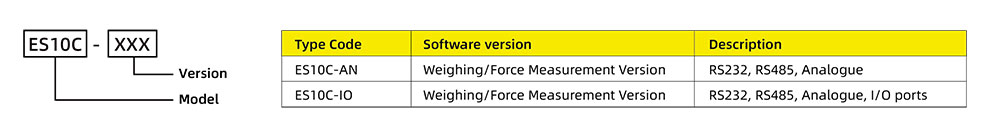

Order Example

Documents

All product descriptions are for reference only, please contact us for the latest product information documents.
