ES11C Weighing Controller

MODEL : ES11C

Weighing Controller, aluminum alloy housing

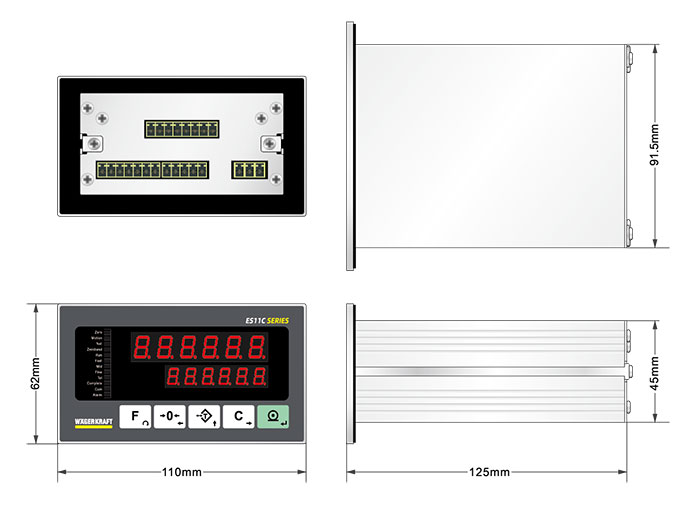

Panel mount

● 1000 times/sec high-speed A/D processing, 960Hz/480Hz/240Hz/120Hz speed selectable
● 6 digits, LED red, Double line display
● Anti-electromagnetic interference, anti-external vibration
● Multi-level dynamic digital filtering to meet the needs of high-speed dynamic weighing /force measurement
● Suitable for high-speed dynamic checkweighing and high-speed force measurement
● Force value trigger force measurement control, I/O trigger force measurement control
● Multiple output interfaces available: RS232, RS485, Analog, I/O port
● Support sample hold, average hold, peak hold, knee hold, interval detection

Communication Ports

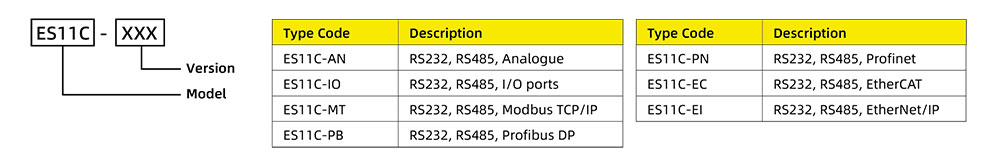

RS232, RS485, Analogue, I/O ports, Modbus TCP/IP, Profibus DP, Profinet, EtherCAT, EtherNet/IP

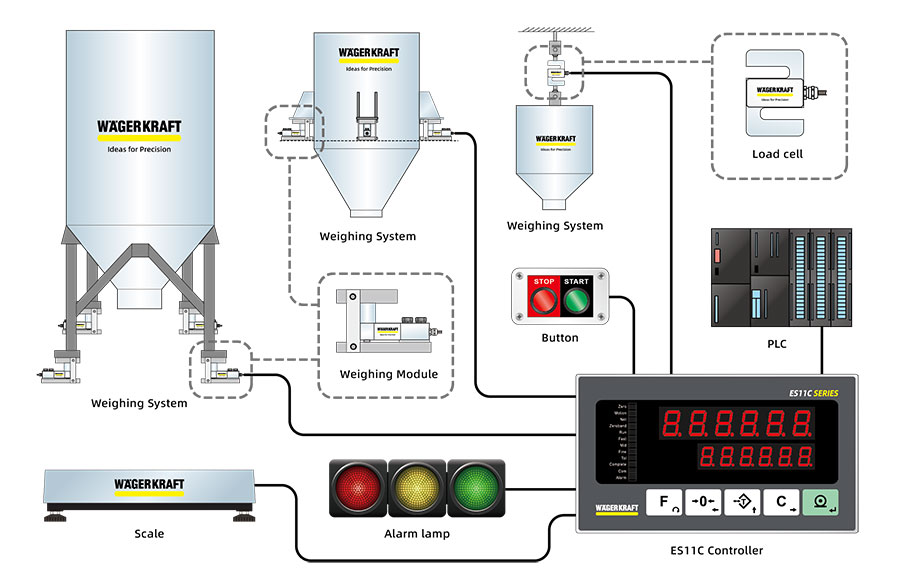

Applications

● Tank, silo, hopper and container
● Vehicle and track
● Bench scales, portable scales and floor scales
● Dosing
● Mixing
● Checkweighing
● Vehicle weighing
● Filling
