Wägerkraft

MODEL : ET28B

Force measurement transmitter, ABS housing
DIN rail mount

● 400 times/sec high-speed A/D processing, 400Hz/200Hz/100Hz speed selectable
● English OLED dot matrix display
● Anti-electromagnetic interference, anti-external vibration
● Multi-level dynamic digital filtering to meet the needs of high-speed dynamic weighing/force measurement
● Suitable for high-speed dynamic checkweighing and high-speed force measurement
● Multiple output interfaces available: RS232, RS485, Ethernet/IP, Profinet, EtherCAT, Modbus-TCP, Analog, I/O port
● Simple comparison set point, sequence control set point, weight loss control set point
● High speed dynamic check weighing, 4 materials 2 speeds batching function

RS232, RS485, Analogue, I/O ports, Modbus TCP/IP, Profibus DP, Profinet, EtherCAT, EtherNet/IP

● Press fitting machines
● Fitting and mounting machines
● Robotics
● Medical measuring equipment
● Testing equipment
● Dynamic force measurement and monitoring
● Automatic measurement and control system

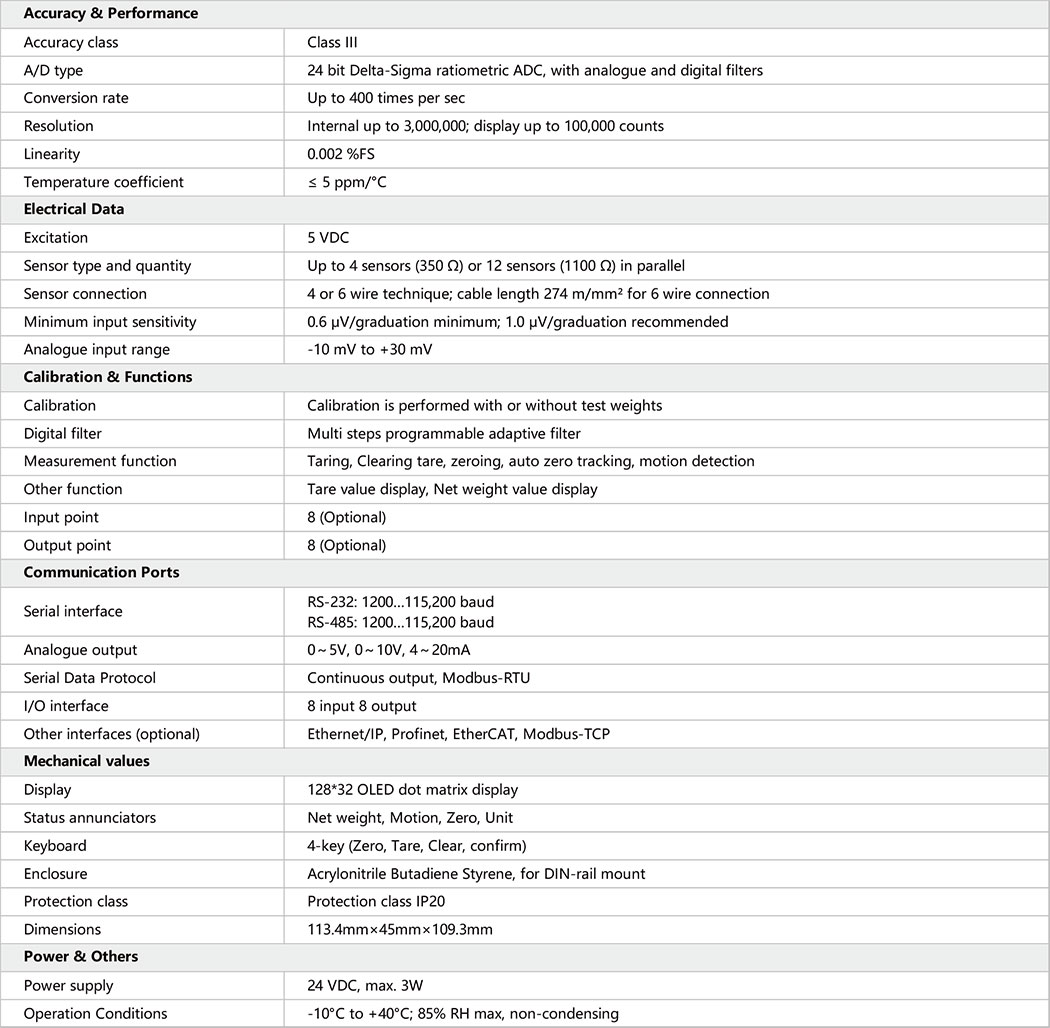

Technical Specifications

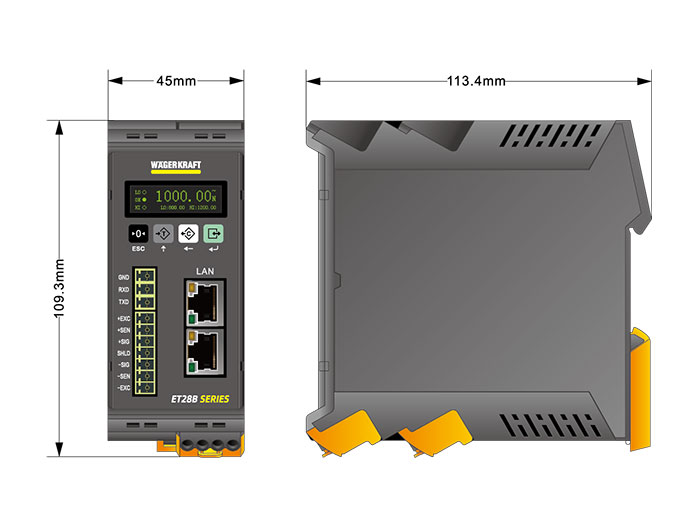

Dimensions

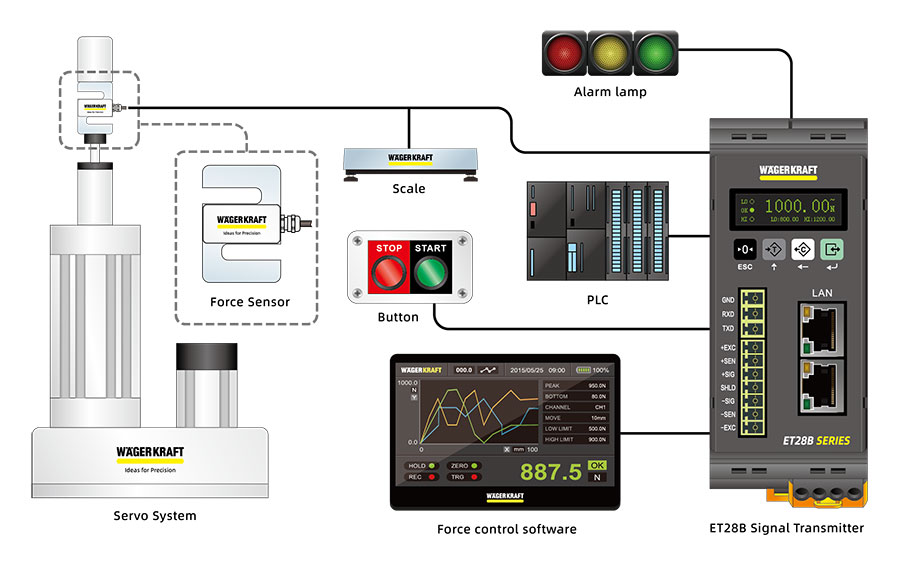

Cases

Options

Industrial Power Supply

Mobile Power Supply

PC

PLC

Clamp Filters

Related Products

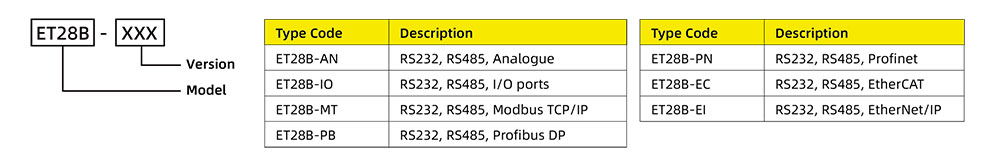

Order Example

Documents

All product descriptions are for reference only, please contact us for the latest product information documents.
