MODEL : KF315A
Compression force sensor, stainless steel construction
5kN…50kN
● Capacities from 5kN to 50kN
● Made of stainless steel, easy to mount
● Used in harsh industrial environments
● High accuracy, high stability, good reproducibility
● Ring force transducer for compression forces
● Environmental protection IP67
5kN / 10kN / 20kN / 30kN / 50kN
● Press fitting machines
● Fitting and mounting machines
● Robotics
● Medical measuring equipment
● Testing equipment
● Dynamic force measurement and monitoring
● Automatic measurement and control system

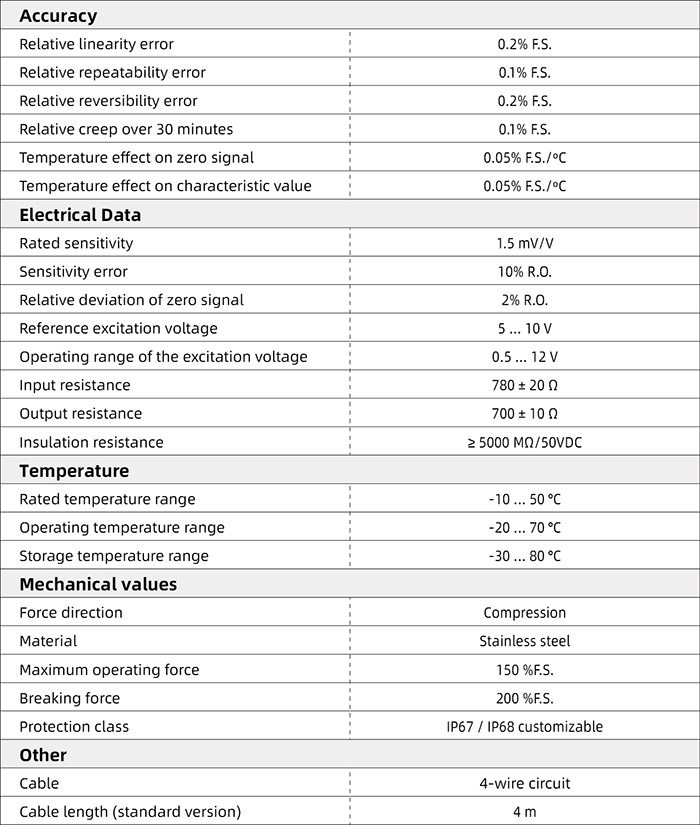

Technical Specifications

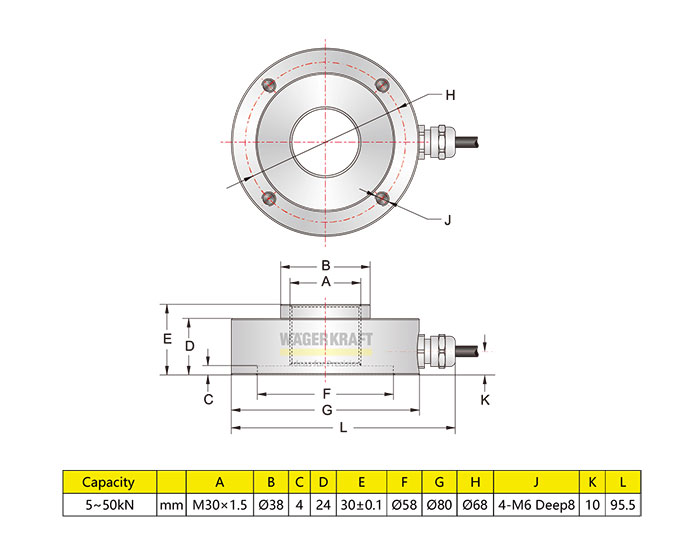

Dimensions

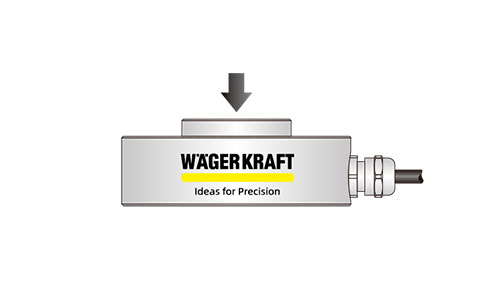

Load Direction
Options
Custom calibration
Customized dimensions possible
Special connector
Special temperature range
Special cable length
External amplifier
Related Products

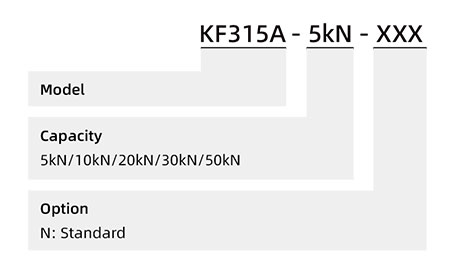

Order Example
