MODEL : KF325A
Compression force sensor, stainless steel construction
10kN…1000kN
● Capacities from 10kN to 1000kN
● Made of stainless steel, rugged design
● Small overall dimensions, easy to mount
● High stability, good reproducibility
● For measuring of compressive forces
● Environmental protection IP66
10kN / 20kN / 30kN / 50kN / 80kN / 100kN / 120kN / 150kN / 200kN / 300kN / 500kN / 600kN / 700kN / 800kN / 1000kN
● Press fitting machines
● Fitting and mounting machines
● Robotics
● Medical measuring equipment
● Testing equipment
● Dynamic force measurement and monitoring
● Automatic measurement and control system

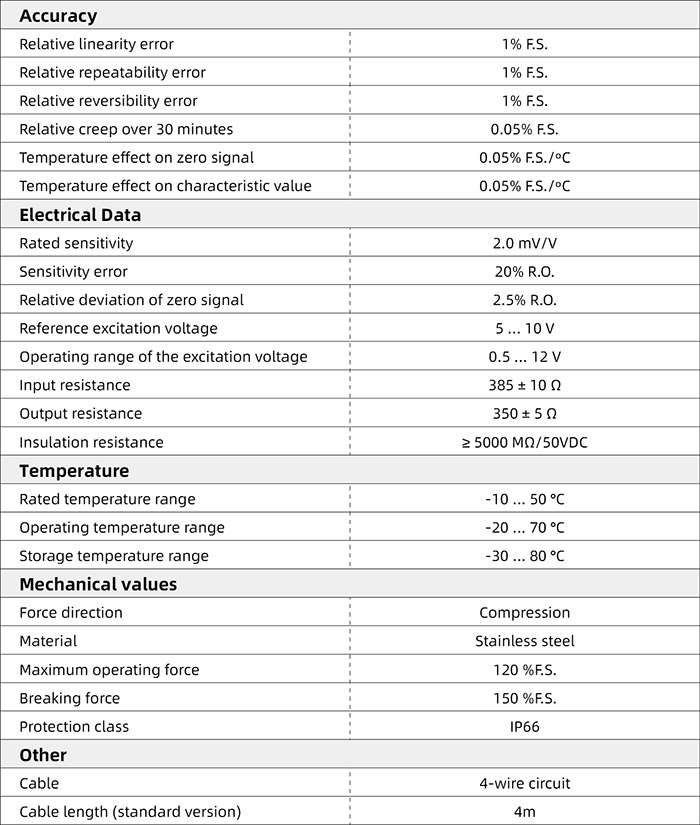

Technical Specifications

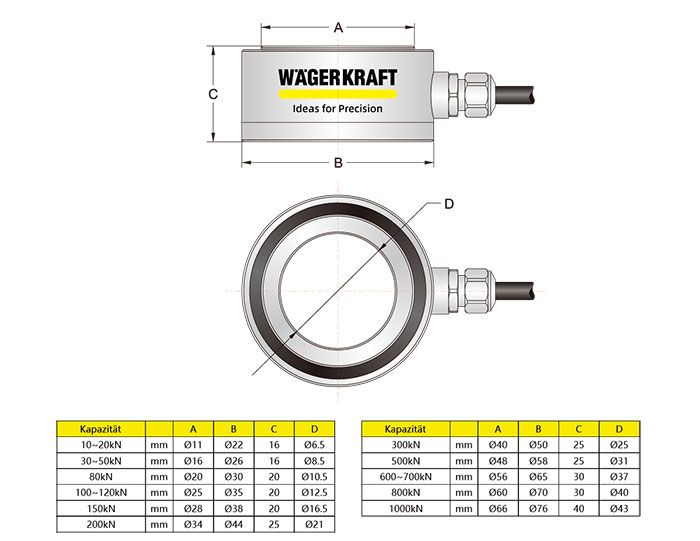

Dimensions

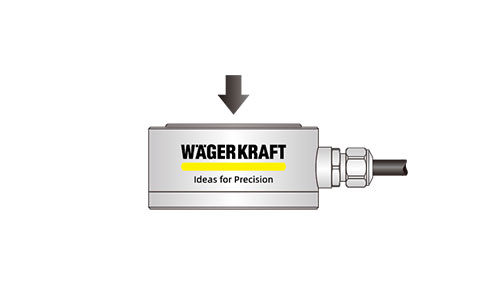

Load Direction
Options
Custom calibration
Customized dimensions possible
Special connector
Special temperature range
Special cable length
External amplifier
Related Products

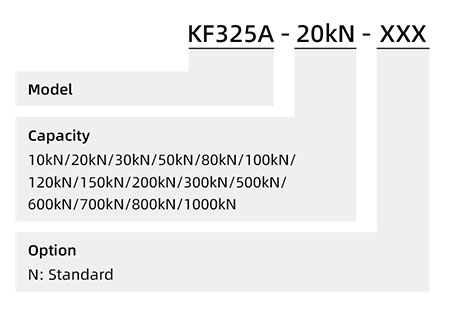

Order Example
