MODEL : KF365A
Compression force sensor, stainless steel construction
50N…1kN
● Capacities from 50N to 1kN
● Made of stainless steel, rugged design
● Small overall dimensions, easy to mount
● High stability, good reproducibility
● For measuring of compressive forces
● Environmental protection IP67
50N / 100N / 200N / 300N / 500N / 1kN
● Press fitting machines
● Fitting and mounting machines
● Robotics
● Medical measuring equipment
● Testing equipment
● Dynamic force measurement and monitoring
● Automatic measurement and control system

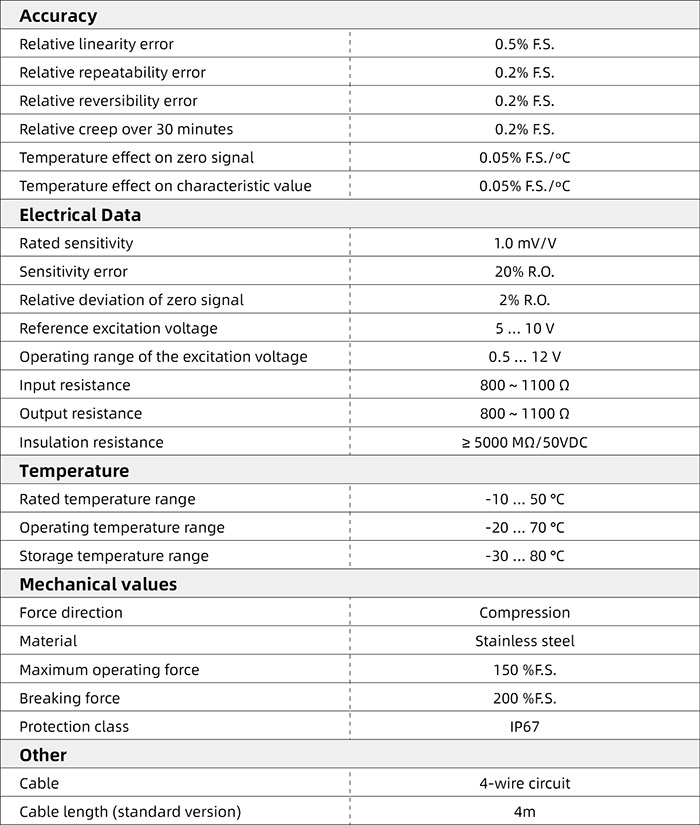

Technical Specifications

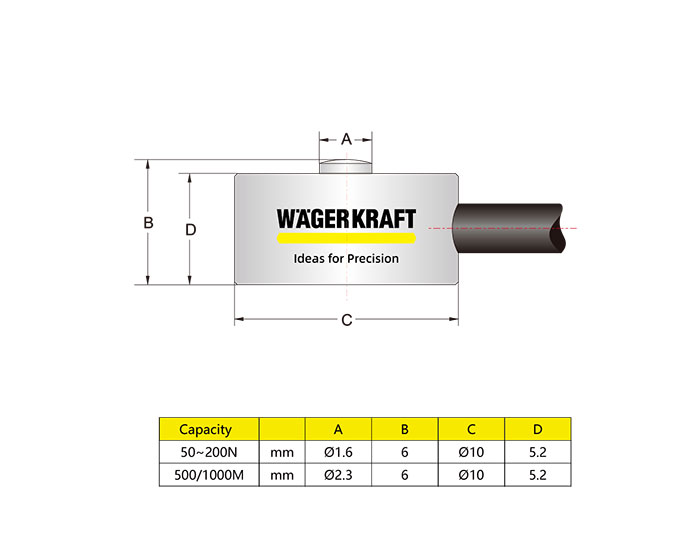

Dimensions

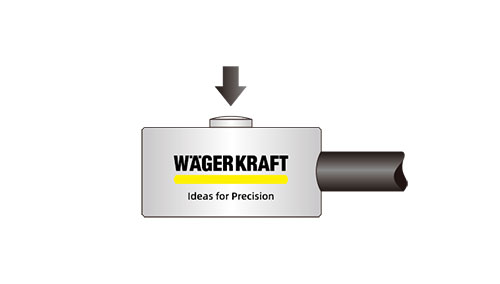

Load Direction
Options
Custom calibration
Customized dimensions possible
Special connector
Special temperature range
Special cable length
External amplifier
Related Products

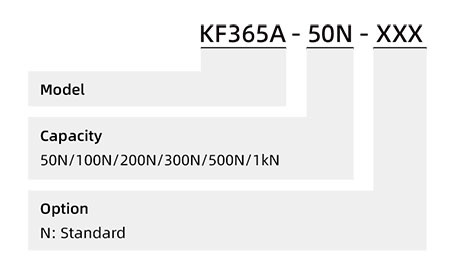

Order Example
