MODEL : KF423A
Compression force sensor, alloy steel construction
50kN…300kN
● Capacities from 50kN to 300kN
● Made of alloy steel, low profile
● Rugged design, easy to mount
● High accuracy, high stability, good reproducibility
● For measuring of compressive forces
● Environmental protection IP66(customizable)
50kN / 100kN / 200kN / 300kN
● Press fitting machines
● Fitting and mounting machines
● Robotics
● Medical measuring equipment
● Testing equipment
● Dynamic force measurement and monitoring
● Automatic measurement and control system
Technical Specifications

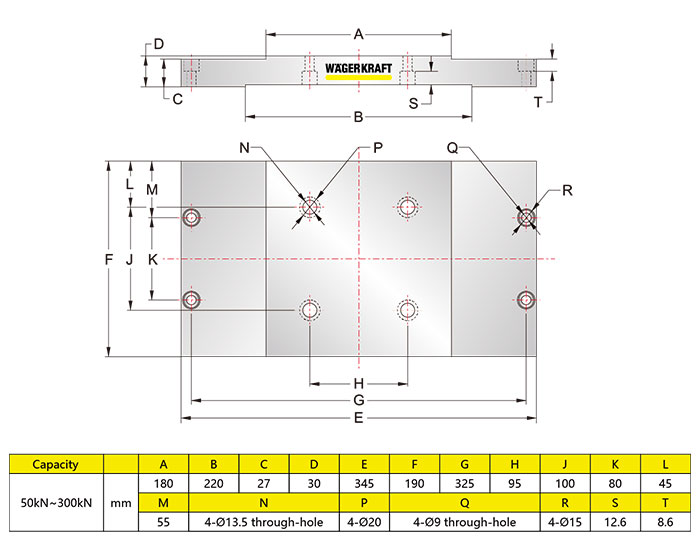

Dimensions

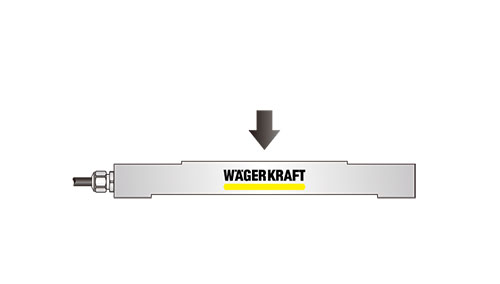

Load Direction
Options
Custom calibration
Customized dimensions possible
Special connector
Special temperature range
Special cable length
External amplifier
Related Products

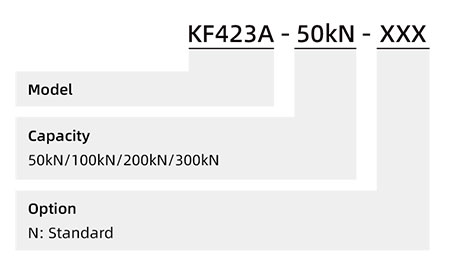

Order Example
