MODEL : KF525A
Tension and compression force sensor, alloy steel or stainless steel construction
10t…800t
● Capacities from 10t to 800t
● Made of alloy steel or stainless steel
● Rugged design, high capacity
● High accuracy, high stability, good reproducibility
● For measuring of tensile and compressive forces
● Environmental protection IP66
10t / 20t / 30t / 50t / 60t / 100t / 200t / 300t / 400t / 500t / 600t / 800t
● Press fitting machines
● Fitting and mounting machines
● Robotics
● Medical measuring equipment
● Testing equipment
● Dynamic force measurement and monitoring
● Automatic measurement and control system

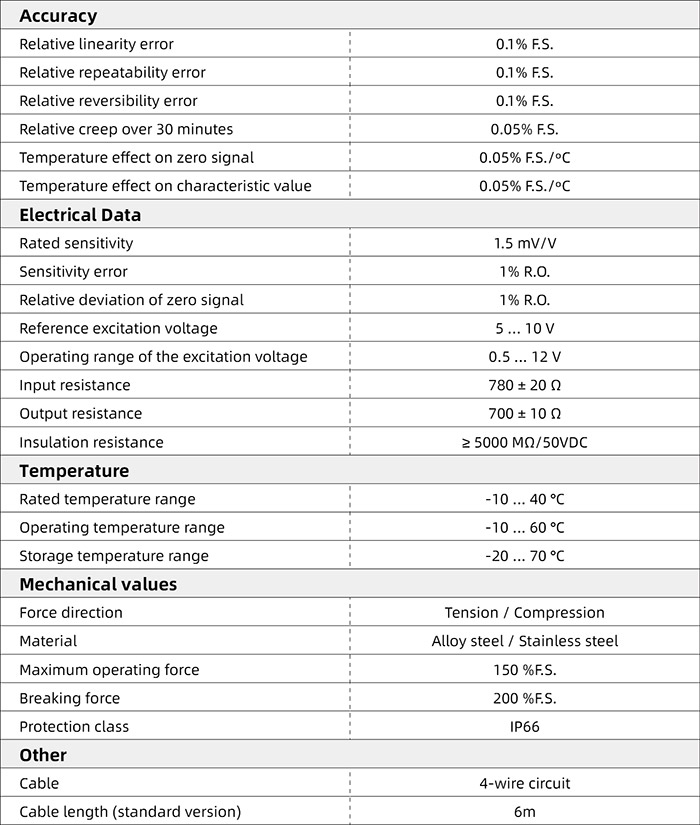

Technical Specifications

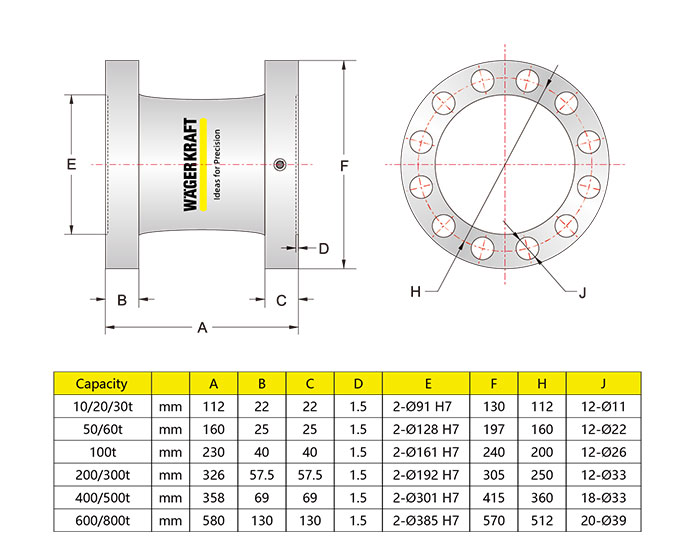

Dimensions

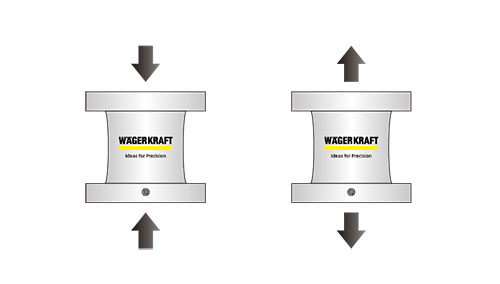

Load Direction
Options
Custom calibration
Customized dimensions possible
Special connector
Special temperature range
Special cable length
External amplifier
Related Products

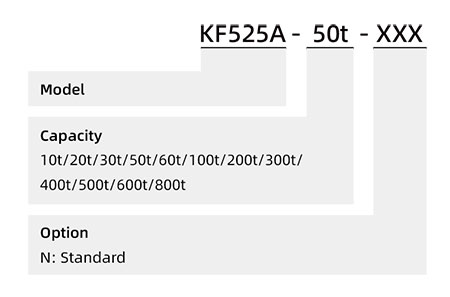

Order Example
