MODEL : KF535A
Tension and compression force sensor, stainless steel construction
10N…2kN
● Capacities from 10N to 2kN
● Made of stainless steel
● Small overall dimensions, easy to mount
● High accuracy, high stability, good reproducibility
● For measuring of tensile and compressive forces
● Environmental protection IP53
10N / 20N / 50N / 100N / 200N / 300N / 500N / 1kN / 2kN
● Press fitting machines
● Fitting and mounting machines
● Robotics
● Medical measuring equipment
● Testing equipment
● Dynamic force measurement and monitoring
● Automatic measurement and control system

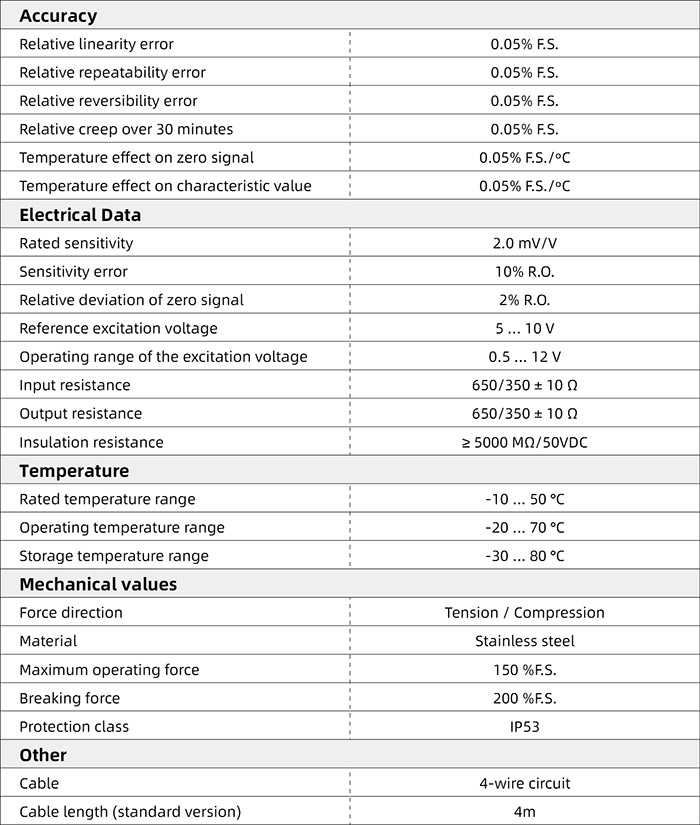

Technical Specifications

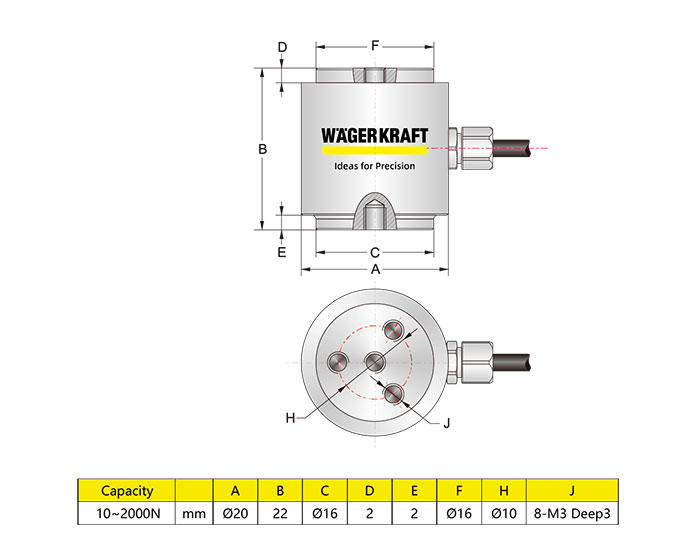

Dimensions

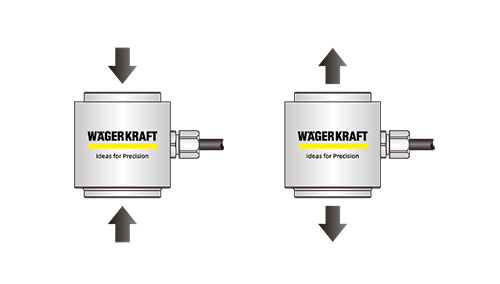

Load Direction
Options
Custom calibration
Customized dimensions possible
Special connector
Special temperature range
Special cable length
External amplifier
Related Products

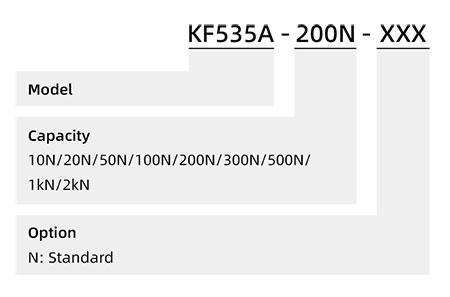

Order Example
