MODEL : KF535E
Tension and compression force sensor, stainless steel construction
1N…200N
● Capacities from 1N to 200N
● Made of stainless steel
● Small overall dimensions, easy to mount
● High accuracy, high stability, good reproducibility
● For measuring of tensile and compressive forces
● Environmental protection IP53
1N / 2N / 3N / 5N / 10N / 20N / 30N / 50N / 100N / 200N
● Press fitting machines
● Fitting and mounting machines
● Robotics
● Medical measuring equipment
● Testing equipment
● Dynamic force measurement and monitoring
● Automatic measurement and control system

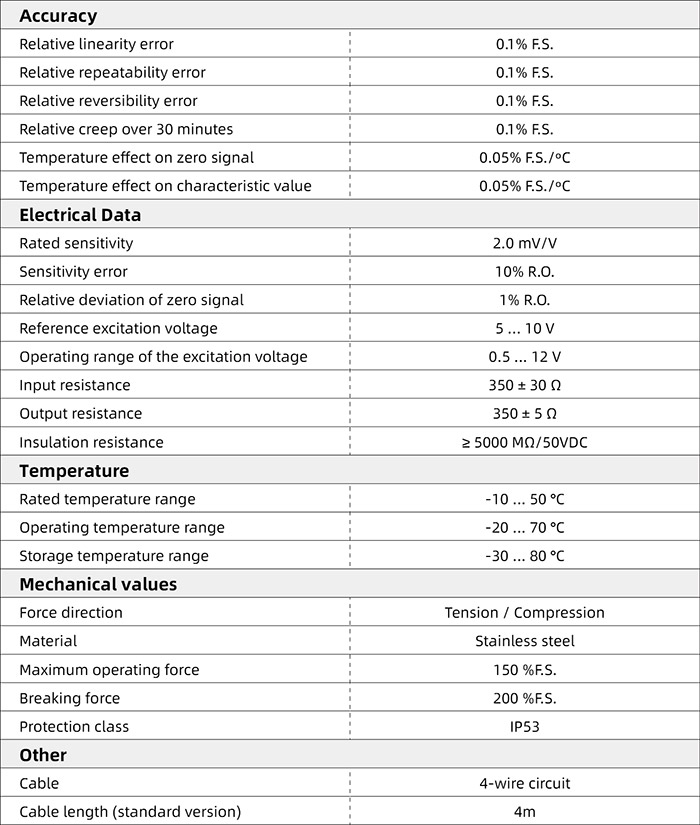

Technical Specifications

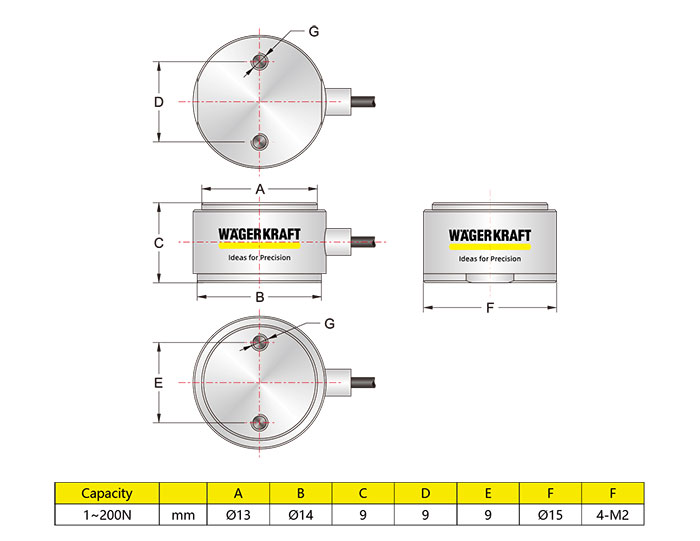

Dimensions

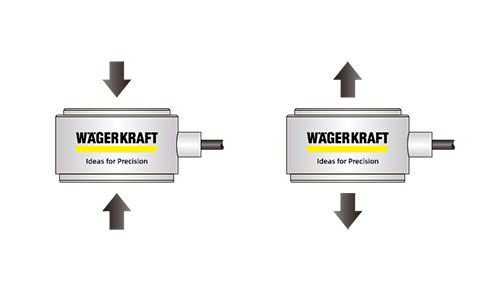

Load Direction
Options
Custom calibration
Customized dimensions possible
Special connector
Special temperature range
Special cable length
External amplifier
Related Products

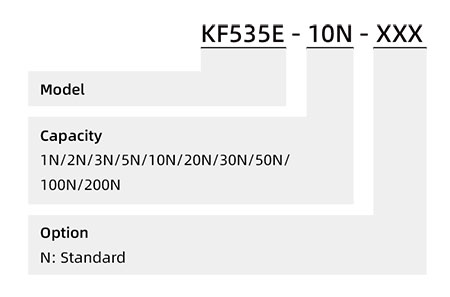

Order Example
