KF575B Tension and Compression Force Sensor

MODEL : KF575B

Tension and compression force sensor, stainless steel construction
20N…5kN

● Capacities from 20N to 5kN
● Made of stainless steel
● Rugged design, small overall dimensions
● High accuracy, high stability, good reproducibility

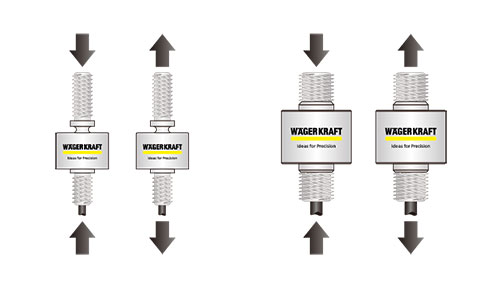

● For measuring of tensile and compressive forces
● Environmental protection IP66

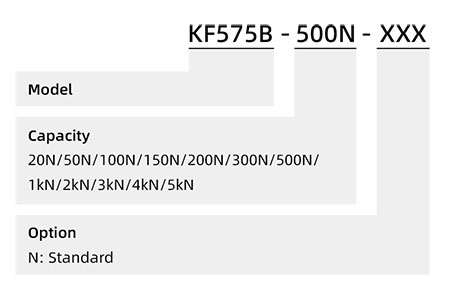

Capacity

20N / 50N / 100N / 150N / 200N / 300N / 500N / 1kN / 2kN / 3kN / 4kN / 5kN

Applications

● Press fitting machines
● Fitting and mounting machines
● Robotics
● Medical measuring equipment
● Testing equipment
● Dynamic force measurement and monitoring
● Automatic measurement and control system
