MODEL : KF615A
Tension and compression force sensor, alloy steel or stainless steel construction
100N…100kN
● Capacities from 100N to 100kN
● Made of alloy steel or stainless steel
● Rugged design, easy to mount
● High accuracy, high stability, good reproducibility
● For measuring of tensile and compressive forces
● Environmental protection IP66
100N / 200N / 500N / 1kN / 2kN / 5kN / 10kN / 20kN / 30kN / 50kN / 100kN
● Press fitting machines
● Fitting and mounting machines
● Robotics
● Medical measuring equipment
● Testing equipment
● Dynamic force measurement and monitoring
● Automatic measurement and control system

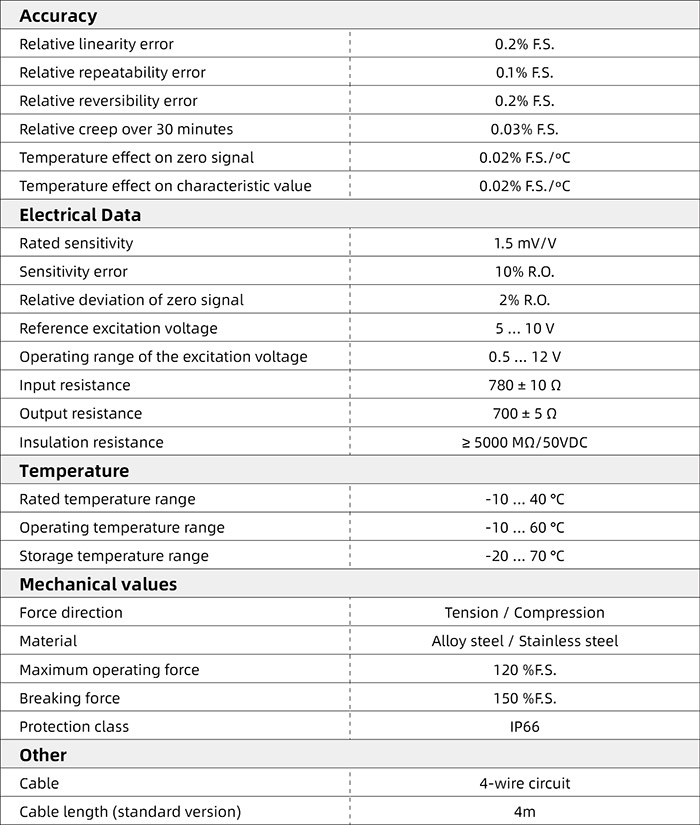

Technical Specifications

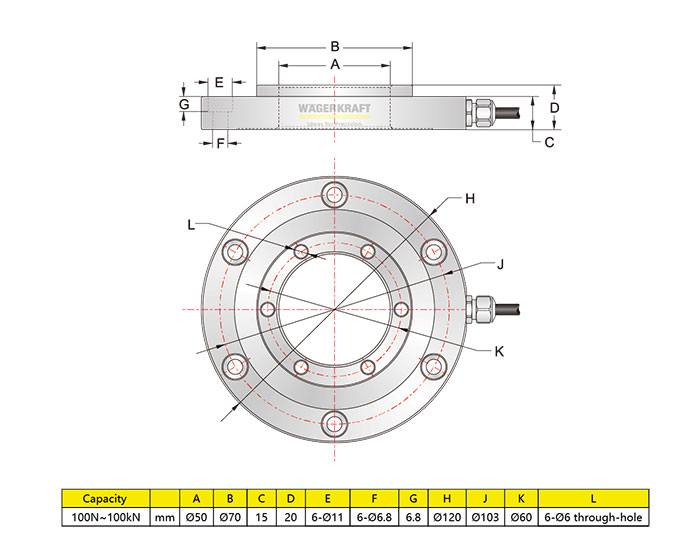

Dimensions

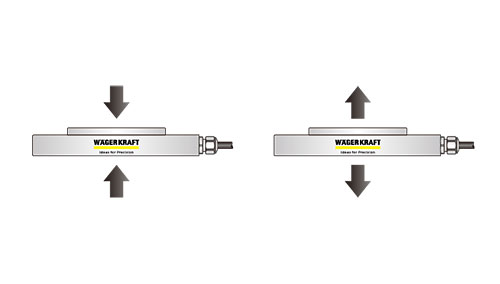

Load Direction
Options
Custom calibration
Customized dimensions possible
Special connector
Special temperature range
Special cable length
External amplifier
Related Products

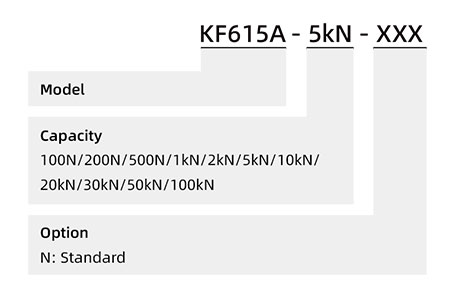

Order Example
