KF655A Tension and Compression Force Sensor

MODEL : KF655A

Tension and compression force sensor, stainless steel construction
1kN…50kN

● Capacities from 1kN to 50kN
● Made of stainless steel, easy to mount
● Used in harsh industrial environments
● High accuracy, high stability, good reproducibility

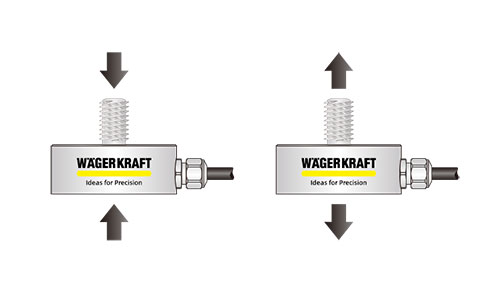

● For measuring of tensile and compressive forces
● Environmental protection IP67 (IP68 customizable)

Capacity

1kN / 2kN / 5kN / 10kN / 20kN / 50kN

Applications

● Press fitting machines
● Fitting and mounting machines
● Robotics
● Medical measuring equipment
● Testing equipment
● Dynamic force measurement and monitoring
● Automatic measurement and control system
