KF735D 3-Axis Force Sensor

MODEL : KF735D

3-Axis Force Sensor, stainless steel construction
5kN…100kN

● Capacities from 5kN to 100 KN
● Made of stainless steel
● Rugged design, easy to mount
● Insensitive to bending moments and lateral force
● High accuracy, high stability, good reproducibility
● For measuring of multiple axial forces
● Environmental protection IP53

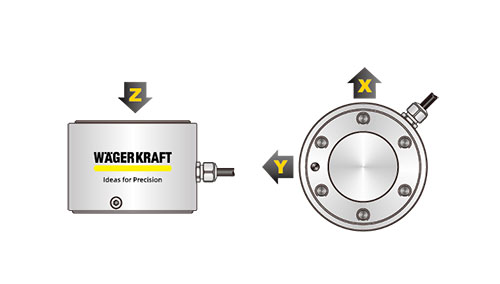

Capacity

X: 5 / 10 / 15 / 20 / 25 / 50 / 100 kN
Y: 5 / 10 / 15 / 20 / 25 / 50 / 100 kN
Z: 5 / 10 / 15 / 20 / 25 / 50 / 100 kN

Applications

● Press fitting machines
● Fitting and mounting machines
● Grinding and polishing machines
● Robotics
● Medical measuring equipment
● Testing equipment
● Dynamic force measurement and monitoring
● Automatic measurement and control system
