MODEL : KM143A
Shear beam load cell, alloy steel construction
500kg…5t
● Capacities from 500kg to 5t
● Made of alloy steel, rugged design
● High accuracy, high stability, good reproducibility
● Unique blind loading hole
● Environmental protection IP67
500kg / 1t / 2t / 3t / 5t
● Floor scales, hopper scales, etc
● Silo and tank weighing
● Filling and packaging
● Mobile weighing
● Conveyor belt weighing
● Control and sorting by weight
● Continuous mixing and dosing
● Industrial process control

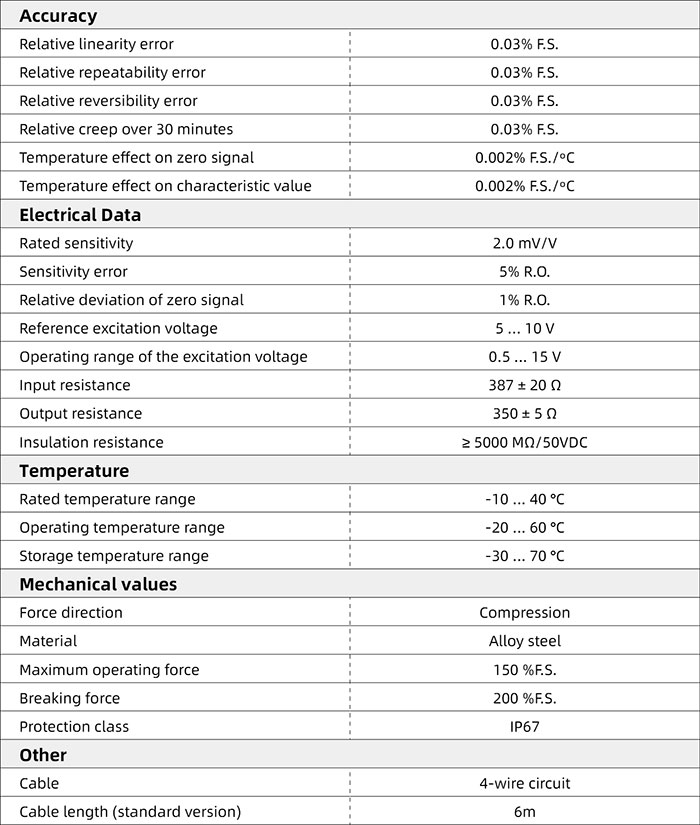

Technical Specifications

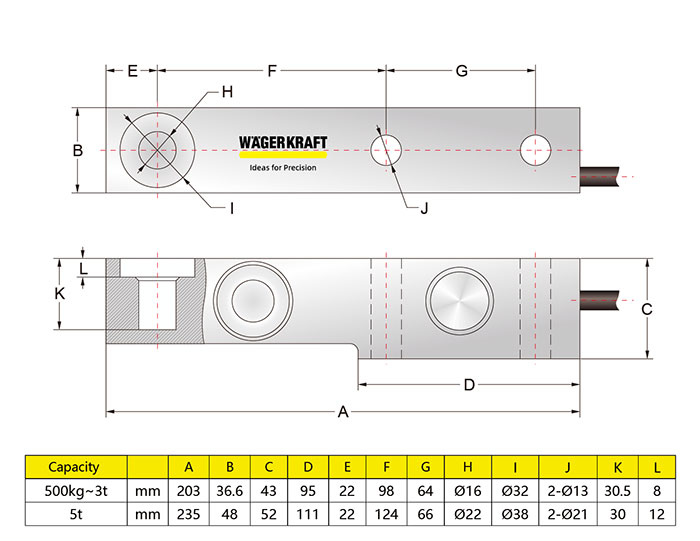

Dimensions

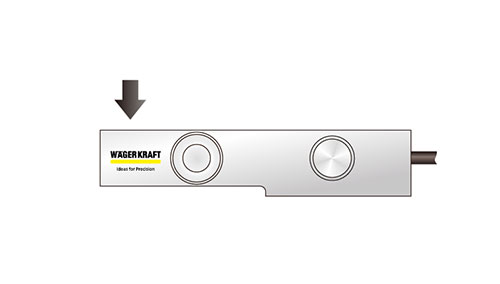

Load Direction
Options
Custom calibration
Customized dimensions possible
Special connector
Special temperature range
Special cable length
External amplifier
Related Products

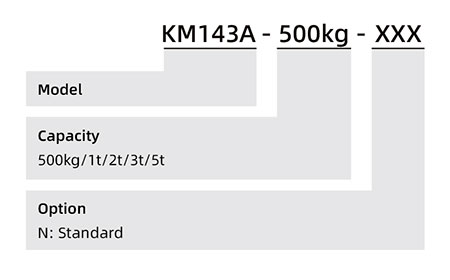

Order Example
