KM637F Tension and Compression Load Cell

MODEL : KM637F

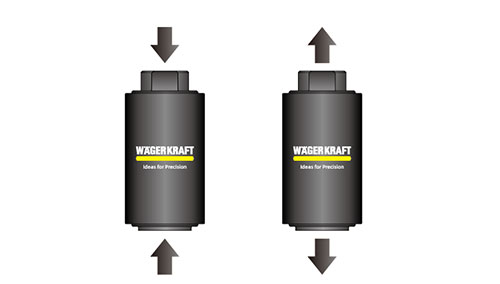

Tension and compression load cell, aluminum alloy or alloy steel construction
5kg…5t

● Capacities from 5kg to 5t
● Made of aluminum alloy (≤500kg) or alloy steel (≥1t)
● High accuracy, high stability, good reproducibility
● Rugged design, wide range of capacities
● Environmental protection IP65

Capacity

5kg / 10kg / 20kg / 30kg / 50kg / 100kg / 200kg / 250kg / 500kg / 1t / 2t / 3t / 5t

Applications

● Press fitting machines
● Fitting and mounting machines
● Robotics
● Dynamic force measurement and monitoring
● Special weighing
● Testing equipment
● Industrial process control
● Calibration of machines and systems
