KM713A Tension and Compression Load Cell

MODEL : KM713A

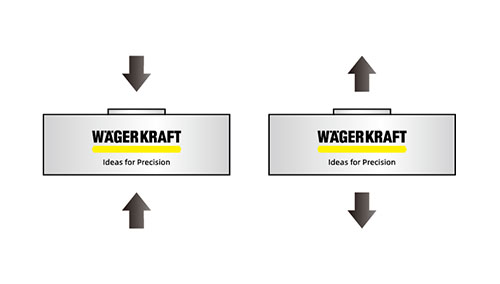

Tension and compression load cell, alloy steel construction
1t…60t

● Capacities from 1t to 60t
● Made of alloy steel, easy to mount
● High accuracy, high stability, good reproducibility
● Rugged design, wide range of capacities
● Environmental protection IP65

Capacity

1t / 2t / 3t / 5t / 6t / 7.5t / 10t / 15t / 20t / 25t / 30t / 50t / 60t

Applications

● Silo and tank weighing
● Hanging weighing systems
● Conveyor belt weighing
● High capacity applications
● Special weighing
● Testing equipment
● Industrial process control
● Automated weighing systems
